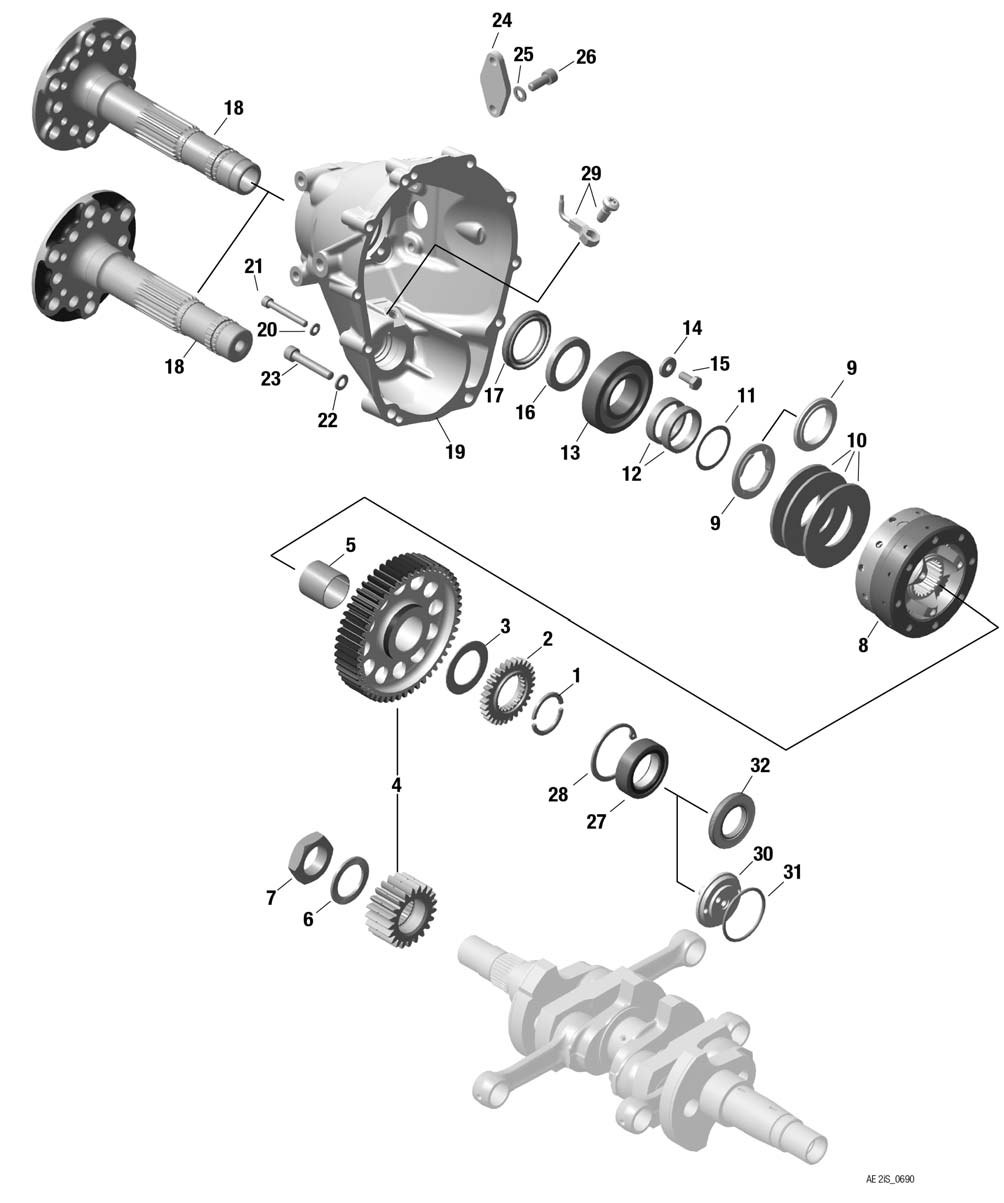

fig. 72-10-00-1
PROPELLER GEAR ASSY. WITH OVERLOAD CLUTCH For ROTAX 912IS
Click on Number to order Part
Your cart is Empty
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|
Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-28 | 893341 | Gear Box 2.43 For 912is Sport | 5175.11 | Add to Cart |
| 1-28 | 893345 | Gearbox With Clutch I 2,43-3 500 Mm | 4657 | Add to Cart |
| 1 | 926035 | Ring Half | 45.06 | Add to Cart |
| 2 | 834233 | Drive Gear 29 T., | 69.13 | Add to Cart |
| 3 | 827992 | Thrust Washer 33,2/51/1,2 | 52.52 | Add to Cart |
| 4 | 886548 | Gear Set I 2,43 | 1336.61 | Add to Cart |
| 5 | 933362 | Bushing 31x33x29,8 | 137.66 | Add to Cart |
| 6 | 845431 | Friction Washer Vs30 | 6.51 | Add to Cart |
| 7 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 45.91 | Add to Cart |
| 8 | 996916 | Overload Clutch Assy. | 1734.32 | Add to Cart |
| 9 | 847787 | Step Collar | 87.83 | Add to Cart |
| 10 | 838216 | Disk Spring B80, 80x41x3 | 17 | Add to Cart |
| 11 | 927401 | Shim 35,4/43/0,2 | 1.53 | Add to Cart |
| 11 | 927402 | Shim 35,4/43/0,5 | 1.9 | Add to Cart |
| 11 | 927403 | Shim 35,4/43/1,0 | 2.48 | Add to Cart |
| 12 | 847687 | Distance Sleeve 35,2/42/6 | 27.55 | Add to Cart |
| 13 | 832587 | Ball Bearing 6207e Tnh, 35-72-17 | 296.76 | Add to Cart |
| 14 | 944320 | Washer 7,2/18,8/3 | 2.11 | Add to Cart |
| 15 | 941760 | Hex. Screw M7x16 Din 933 | 0.97 | Add to Cart |
| 16 | 926022 | Spacer Ring 36/50/5,5 | 31.87 | Add to Cart |
| 17 | 950470 | Oil Seal As 40x55x7 | 79.43 | Add to Cart |
| 18 | 937036 | 937 036 Use 937 047 | 1047.18 | Add to Cart |
| 19 | 811959 | 811 959 Use 610 362 | 817.98 | Add to Cart |
| 20 | 827962 | Washer 6,4 Din 125 | 0.18 | Add to Cart |
| 21 | 241823 | Allen Screw M6x45 Din 912 | 0.76 | Add to Cart |
| 22 | 944131 | Washer 8 Mm | 0.76 | Add to Cart |
| 23 | 841562 | Allen Screw M8 X 45 | 1.14 | Add to Cart |
| 24 | 926151 | Cover | 27.2 | Add to Cart |
| 25 | 945832 | Lock Washer A8 | 0.18 | Add to Cart |
| 26 | 940592 | Hex.screw M8x20 | 0.97 | Add to Cart |
| 27 | 232246 | Roller Bearing Rnu 205 Ecp/pab4l | 93.91 | Add to Cart |
| 28 | 945820 | Retaining Ring 52x2 | 1.9 | Add to Cart |
| 29 | 950200 | Oil Seal 30x52x7 | 82.06 | Add to Cart |
| 30 | 810301 | Oil Inlet Flange | 335.9 | Add to Cart |
| 31 | 430175 | O-ring 46x3 | 4.19 | Add to Cart |
Showing 1 to 35 of 35 entries
